Integrated chips
Integrated chips are manufactured by mass production. The basic element of the chip (upper part) is a plastic plate with standard Luer connectors and an elastomeric thin film for conformal contact with the lower part in which microfluidic circuits can be patterned. While the lower part can be a sheet in plastic, elastomeric, glass, silicon or other materials, standard elements such as mixing Y-channels, gradient Xmas trees, droplet generators, etc. can be patterned. The upper and the lower part of the chip can be reversely or irreversibly assembled.
Main features
- Integrated patterns
- Standard Luer connectors
- Plug-and-play configuration
- Different substrate choices
- Users may define their patterns
- Mass production

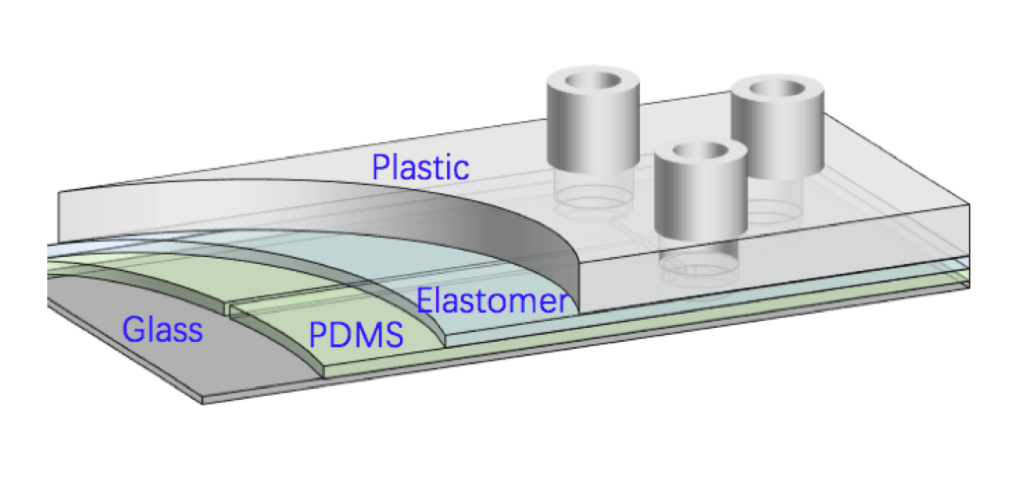

Schema of integrated chips configuration and composition

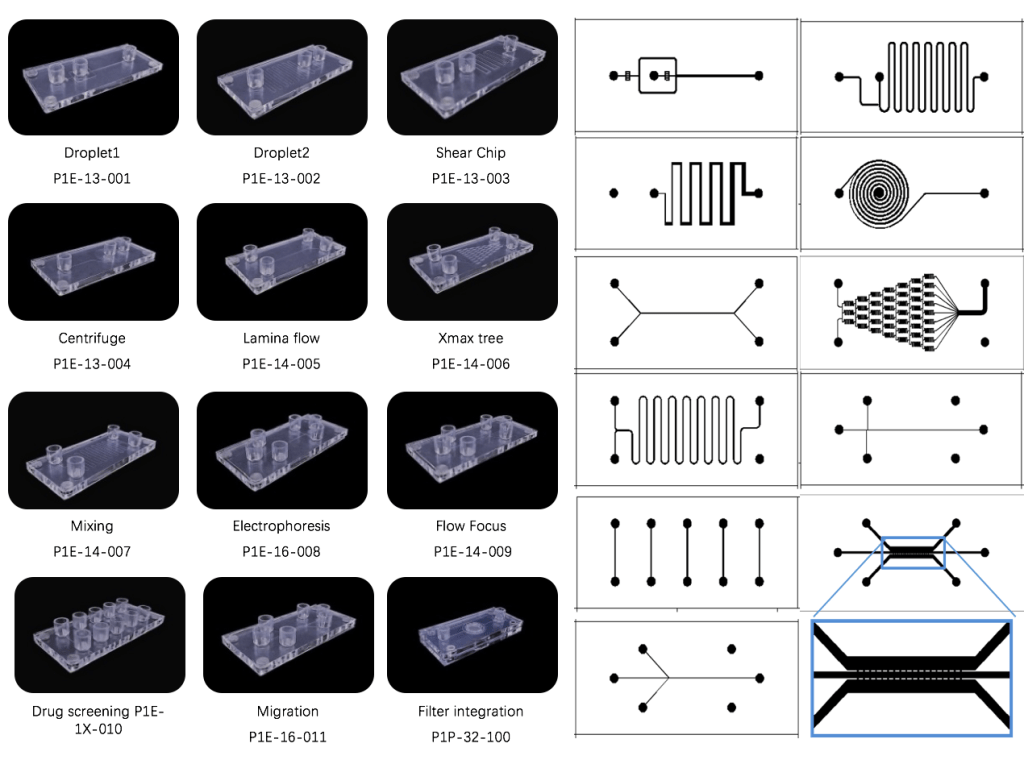

standard patterns
specifications
Chip size | 55 mm x 25 mm x 4 mm |
Channel depth | 50/100um |
Channel width | 50-200um |
Substrate | Glass or PDMS |
Materials | Polycarbonate/silicon film |
Connectors | Luer (1/16) |
Applications

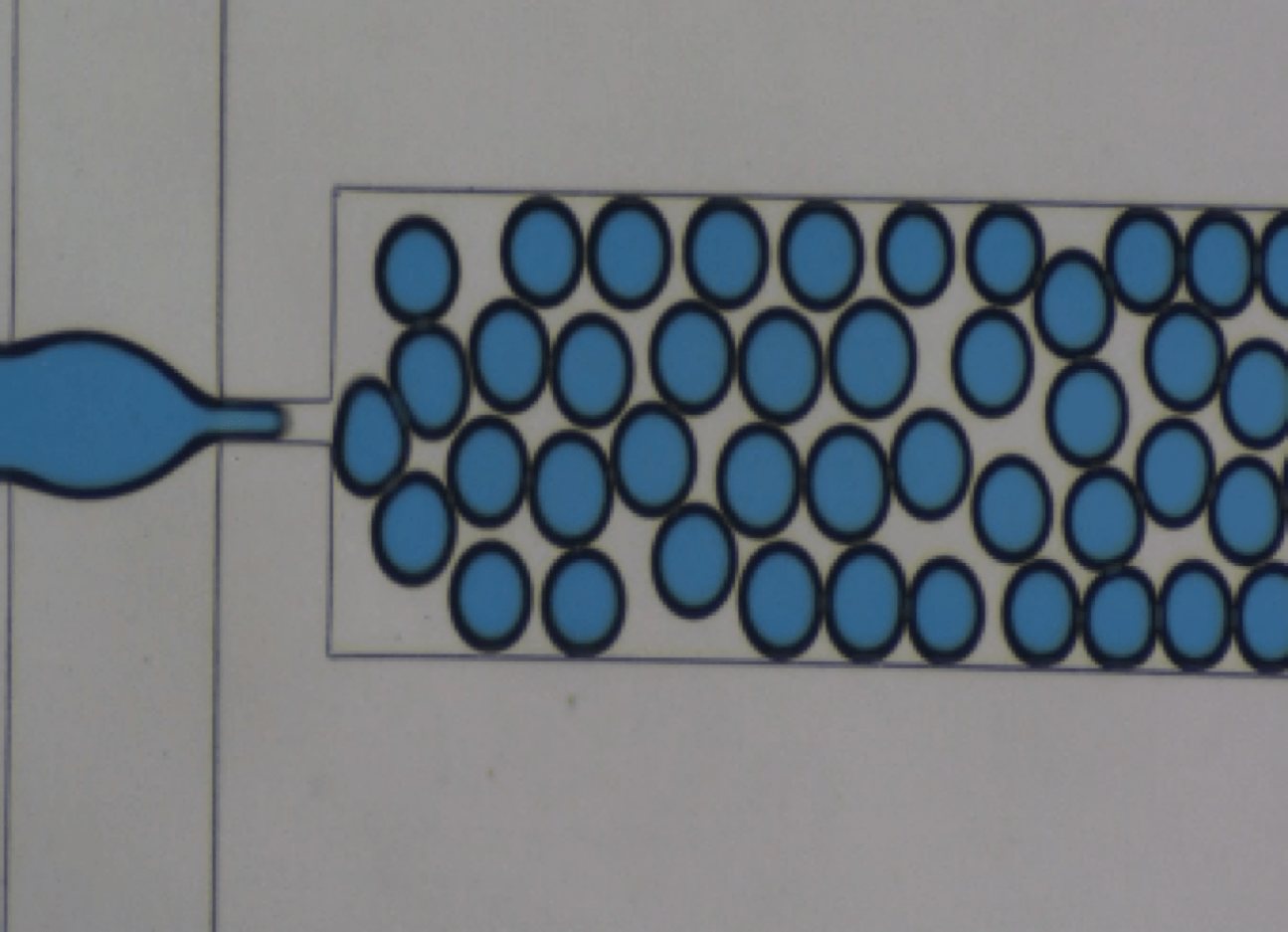

Droplet production
High throughput production of mono disperse microdroplets
laminar flow
High spatial resolution control of multi laminar flow within integrated chips

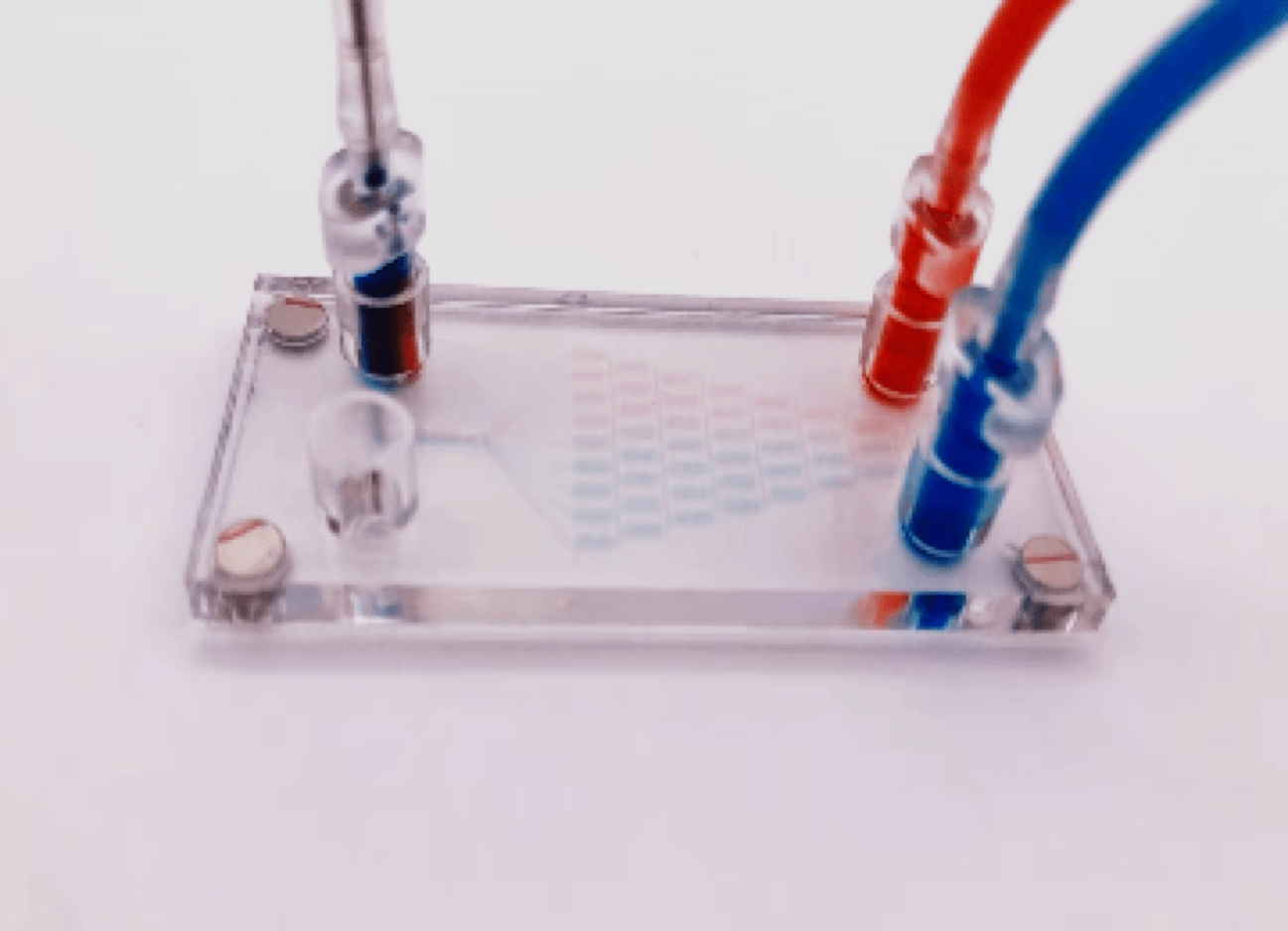

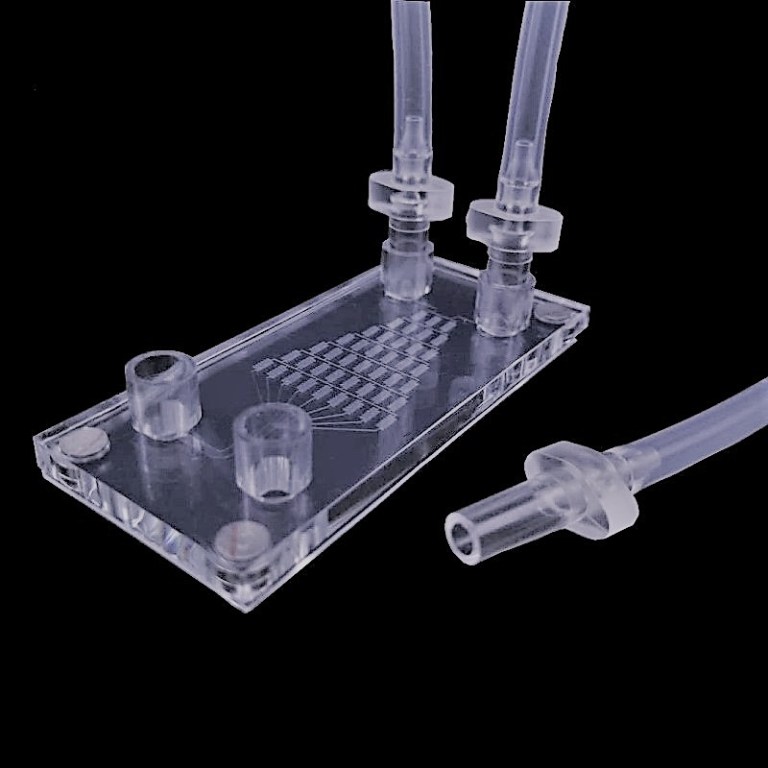

gradient generation
Wide range concentration gradient using Christmas tree like chip

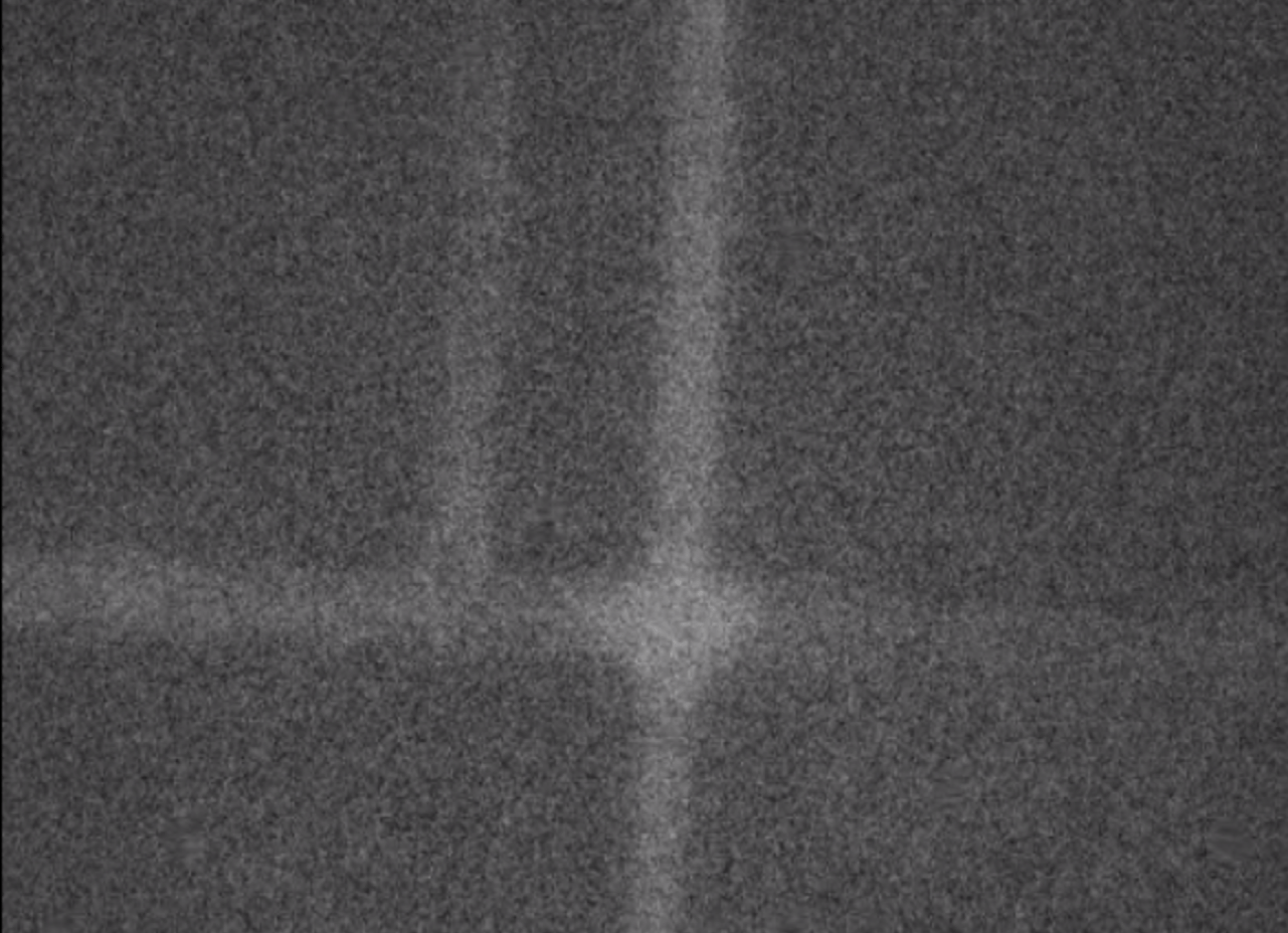

electrophoresis
High efficiency microfluidic capillary eletrophoresis separation
