Flow controller

FC-PVL multi function flow controller is an integrated system for general microfluidic processing in Physics, chemistry, biology, biomdecine and different engineering fields. It is versatile and flexible allowing easy and automatic control of complex fluids ( gas, liquid, electric) . It is a compact and open source platform for professional system development. In addition,  it provides different working modes ( on line, off line and network)  depending on the application conditions.



models

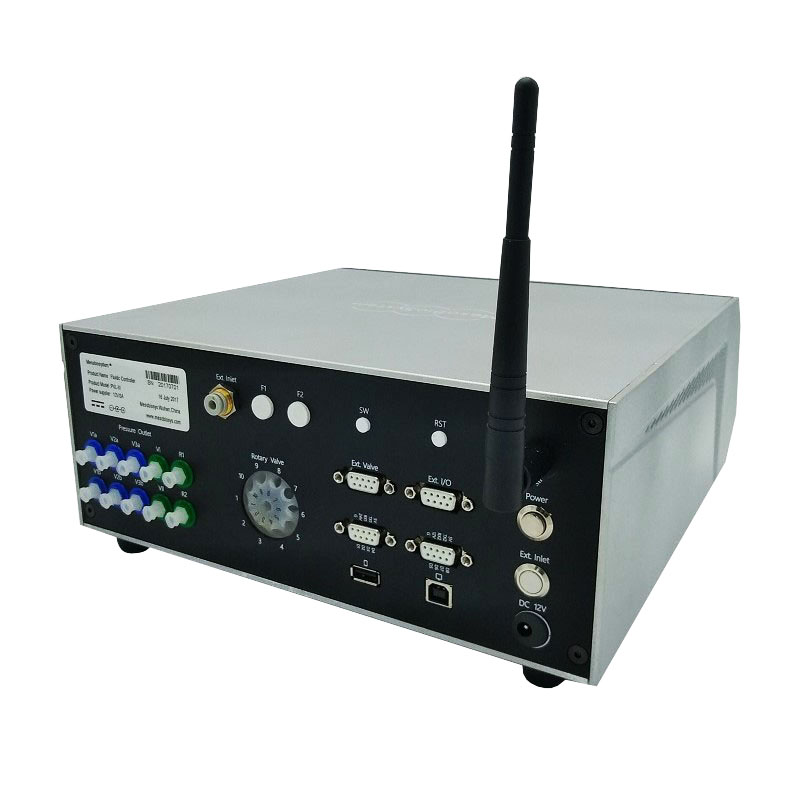

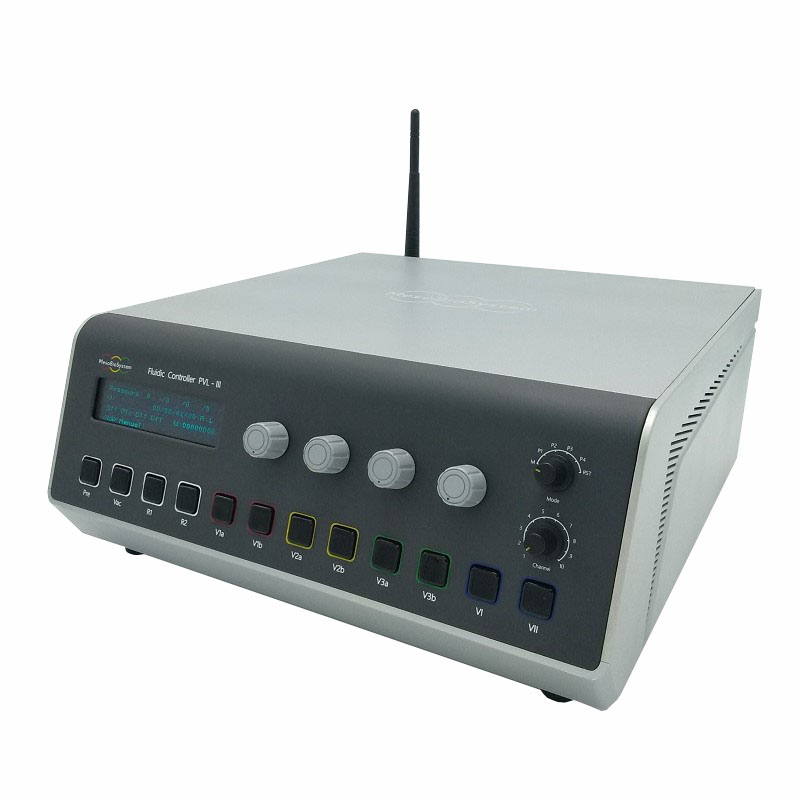

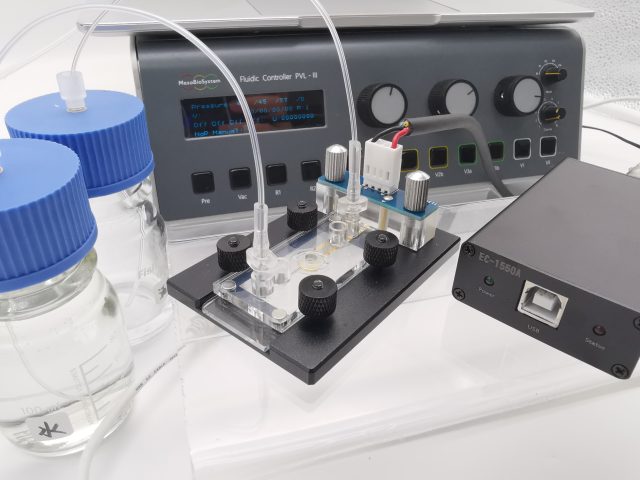

FC-PVL3

Model FC-PVL3 is an integrated system for general microfluidic processing. It is composed of built in pump, vacuum pump, solenoid valves, pressure  regulators, rotary valve and pressure sensors. It also has 5V, 12V and 24V outputs, analog inputs and outputs as well as RS232 and TTL serial communication interfaces which controls external elements.

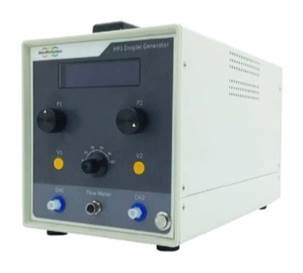

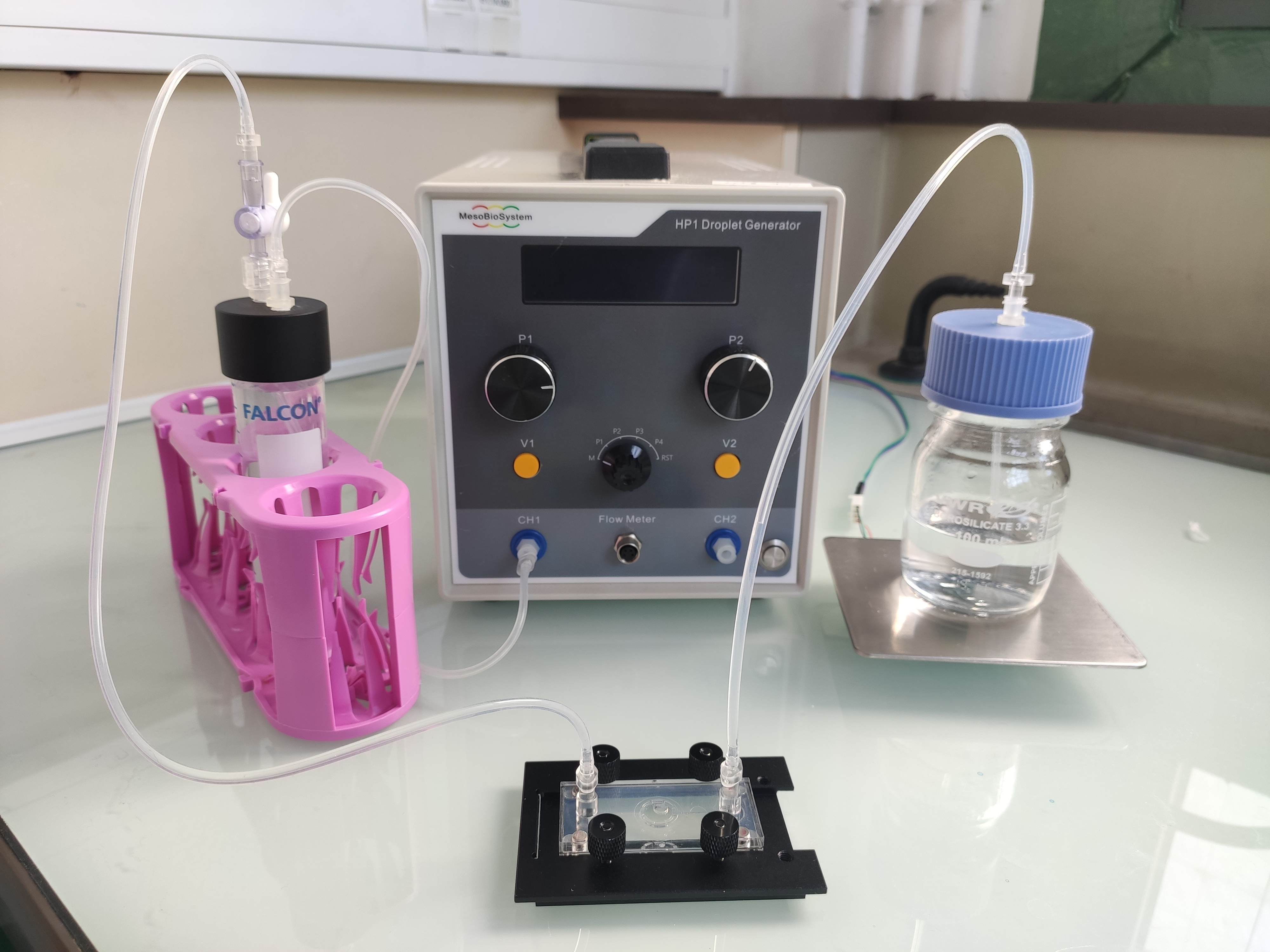

fc-hp1

Model FC-HP1 is a microfluidic controller with high precision regulation. It is composed of built in pump, solenoid valves, high precision pressure regulators and pressure sensors. It also has 5V and 24V outputs, analog inputs and outputs as well as RS232 serial communication interfaces which controls external elements.

main features

  • Built-in pressure & vacuum generators
  • Inlet for external pressurized sources
  • High precision pressure regulators
  • Multichannel pressure switches
  • Multichannel liquid distributors
  • Multichannel control of external valves
  • Multichannel Analogical &digital in/out
  • Pre-programed off-line operation
  • Graphic users interface
  • Integrated Wifi/Bluetoutch modules

specifications

FC-PVL3

Configurations& parameters

Built-in air pump :  5mbar/1000mbar, noise < 65 db

Built-in vaccum pump : -0.5mbar/-500mbar, noise < 65 db

4 high precision regulator: accuracy±1mbar

8 solenoid valves & 2 pressure release valves: response time100ms

1 rotary valve: 10 channels, response time1s

8 channels of 12V voltage output

4 analog outputs and 4 analog inputs

3 digital outputs /inputs &  1 TTL serial output

2 RS232 port

4KB EPPROM (for numerical sequence storage) & 1GB SD card memory

Bluetooth communciation module

General parameters

Gas fittings: Luer

Dimensions: 275 × 250 × 110 mm

Weight: 4.5Kg

FC-hp1

Configurations& parameters

Built-in air pump :  0mbar/2000mbar, noise < 65 db

2 high precision regulator: accuracy±1mbar

2 solenoid valves:  response time100ms

1 flow meter connector

1 RS232 port

5V/24V output

General parameters

Gas fittings: Luer

Dimensions: 150x280x160mm

Weight: 1.5Kg

Woking modes

Offline operation: All internal and some of the external elements can be controlled with the front panel buttons and knobs. The user defined program sequences or algorithms can also be chosen for automatic operations.

Online operation: Computer programs in C++, Matlab or Android are prepared with appropriate graphical interface to facilitate the control and monitoring or to download program sequences or algorithm into the apparatus for offline operations.

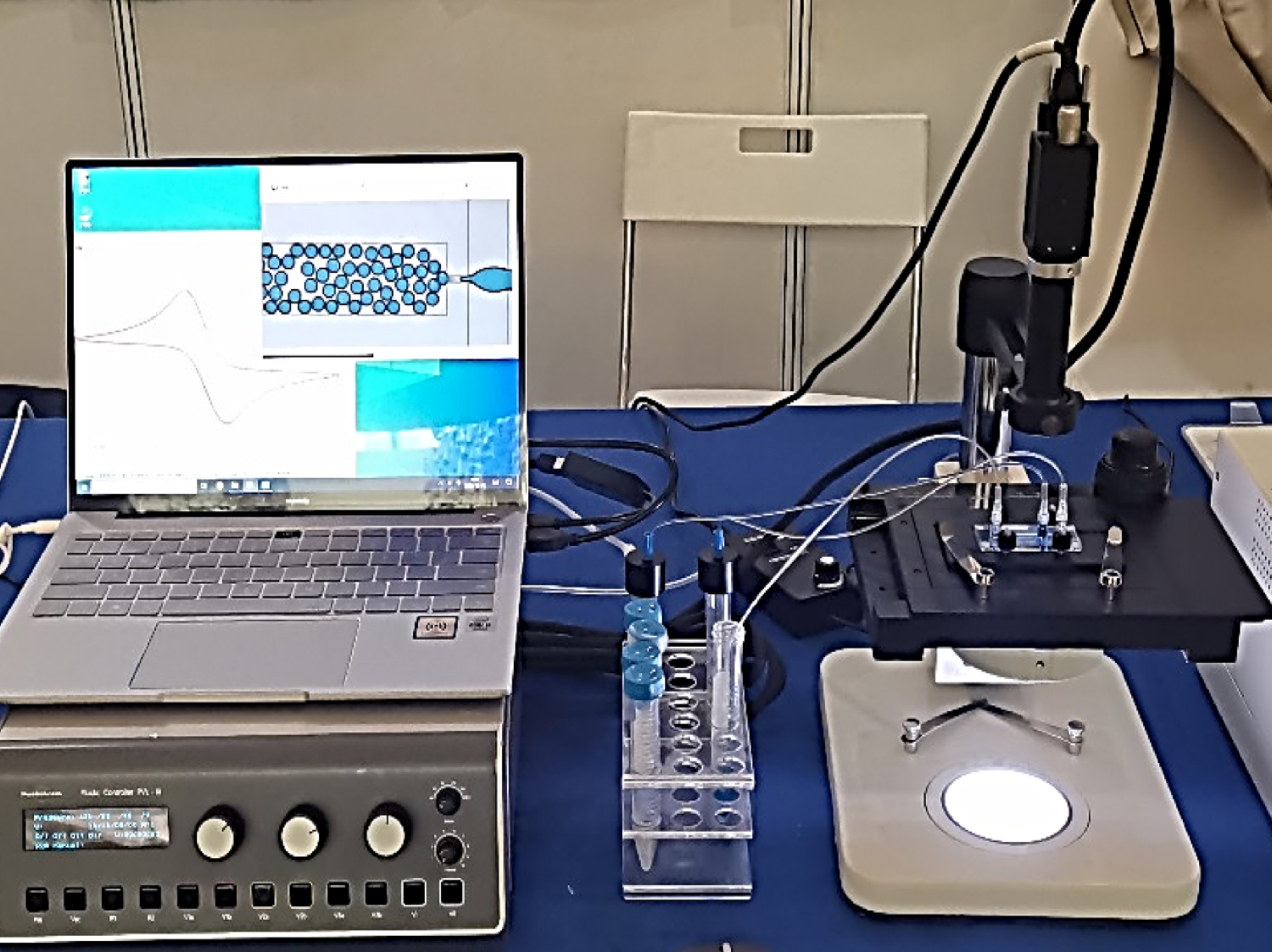

Network operation: The remote control is feasible with Bluetooth, wireless or Ethernet using smartphones, tablets and other terminals. In addition, they can easily communicate with other MesoBioTech instruments and commonly used devices such as NI-Daq modules, CCD cameras, spectrometers, electrochemical station, etc. for monitoring or feedback control. Finally, MesoBioTech provides open sources or SDK for uses’ development.



optional accessories

  • Sensirion flow-meters
  • Solenoid valves
  • Rotary valve
  • Liquid distribution valve
  • Low noise pressure source
  • Fast CCD camera
  • Microscope stage
  • Optical spectrometer
  • Electrochemical station
