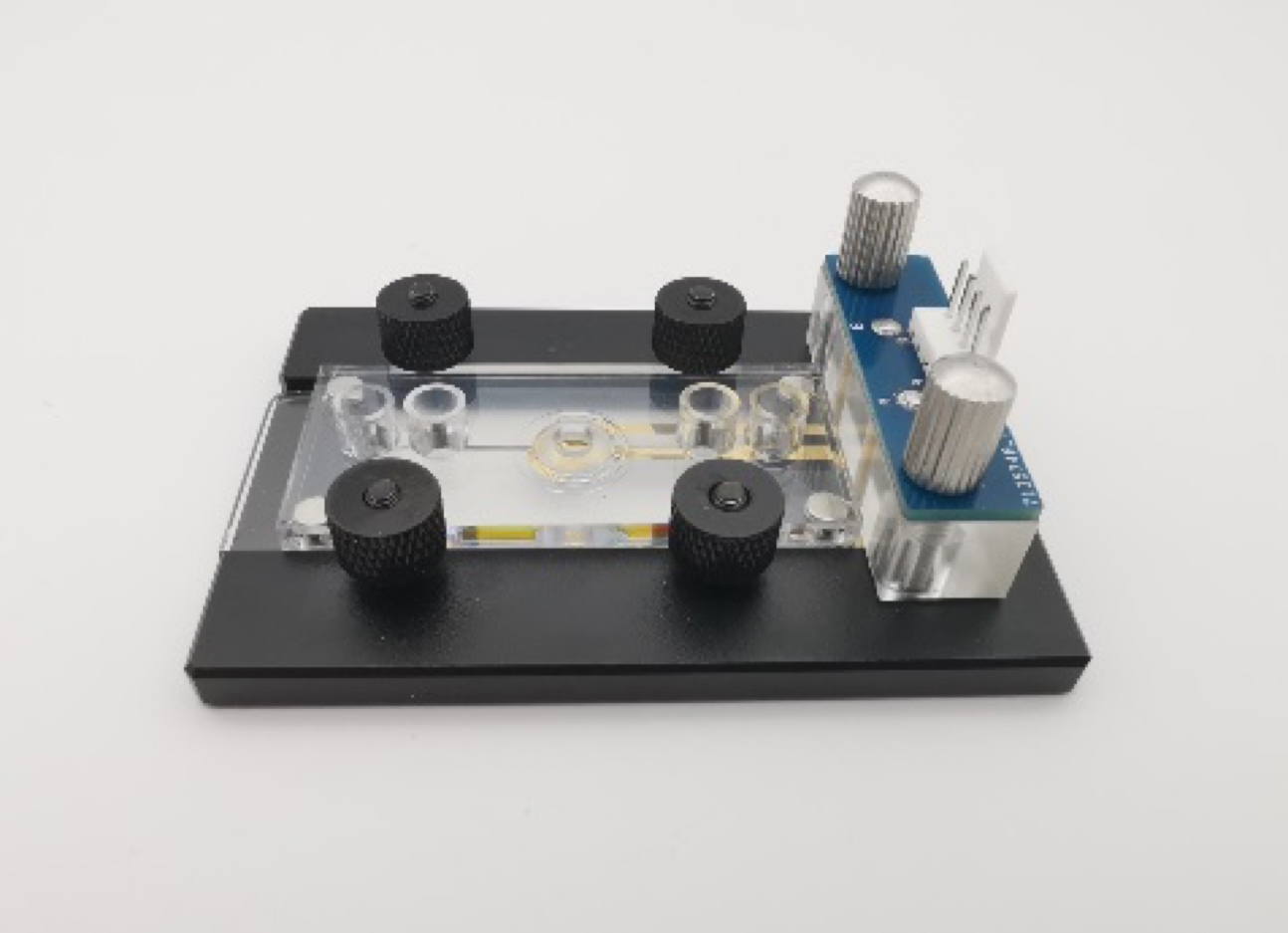

Chip clamp
Multi type chip clamps were designed to cooperate with our integration chips for different purpose applications. Quick assembling /disassembling and good sealing can be achieved with our chips with help of these clamps.
Configurations

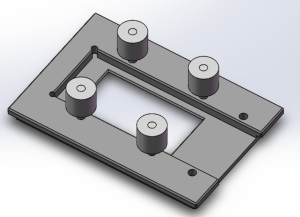

Clamp for one chip

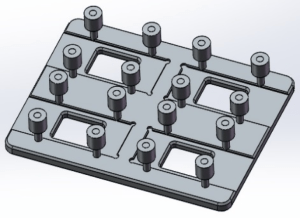

Clamp plate

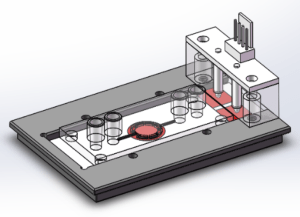

Electrode clamp
Main features
- Fasten with hand screw
- Microscope imaging compatible
- Multi chip in one clamp
- Plug& play electric connector
- Extension flexibility
specifications
Dimension | 80mm x 55mm x 5.5 mm |
Chip holder dimension | 75mm x 25 mmx 3mm |
Open window | 40mm x 20 mm |
Materials | Hard aluminium |
